Application Field

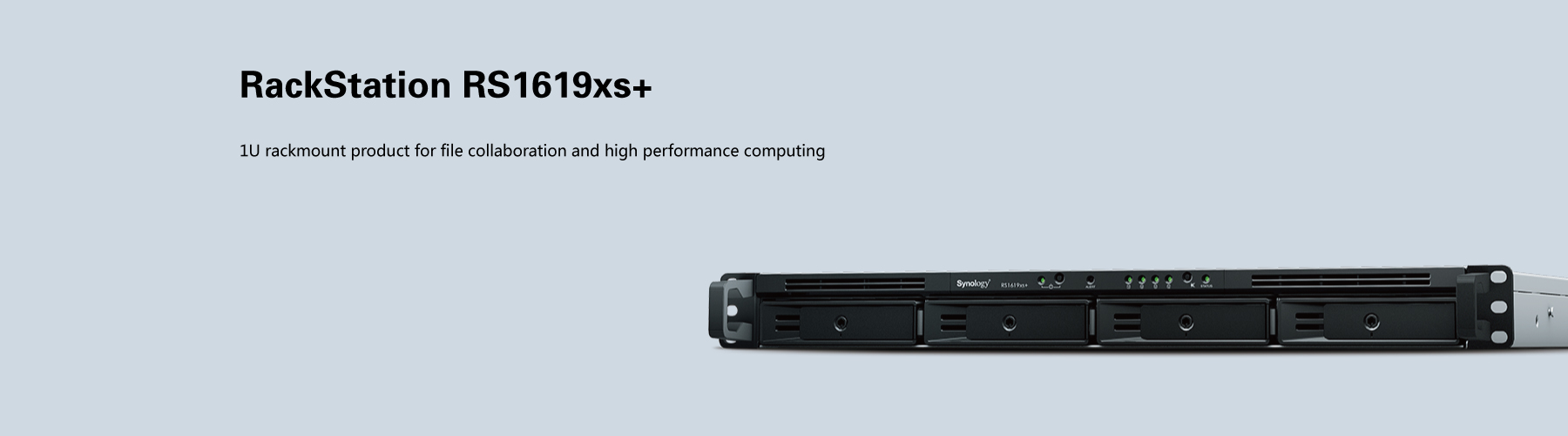

The RS1619xs+ is a high-capacity, scalable 1U rackmount NAS with scalable memory and M.2 SSD cache configuration for today's enterprise needs a flexible, reliable and efficient storage solution.
Product Features
Fast storage and excellent computing power
The RS1619xs+ is a high-capacity, expandable 1U rackmount NAS with upgradeable memory and M.2 SSD
The configuration is designed to meet the needs of modern enterprises that require flexible, reliable and efficient storage solutions.
CPU: quad core, up to 2.7GHz
RAM option: 8GB DDR4 UDIMM up to 64GB
High performance: continuous read speeds up to 1,523 MB per second, 162,097 iSCSI random read IOPS
Scalability: can be extended to 16 hard drives with one RX1217/RX1217RP
5 year warranty
We are committed to improving product innovation and quality, and Synology guarantees a robust and reliable data tube with a 5-year limited warranty service.
Experience, providing responsive technical support and hardware replacement services to maximize your return on investment.
iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V
Increase productivity with Citrix Xen Server and OpenStack Cinder. Can use Virtual Machine
The Manager runs and manages multiple virtual machines on Windows, Linux, or DSM.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technology and optimized snapshot technology to prevent data corruption and reduce
Maintenance costs. While providing high data integrity, it also provides flexible and efficient data protection and recovery tools.
Flexible shared folder/user quota system, providing full quota control for all user accounts and shared folders
Snapshot Replication provides scalable, storage-capable data protection with 1,024 shared folder backups and 65,000 system snapshots.
Ability to recover data quickly and flexibly with file or folder level data recovery
Automatic file self-healing capability detects and recovers damaged files without user intervention
Backup solution
The RS1619xs+ combines a variety of backup applications to protect your critical data on all your devices with an intuitive user interface and reliable storage technology.
Digital asset protection
Supported by Synology DiskStation Manager (DSM), Synology NAS provides advanced security measures to prevent sudden data loss and prevent potential security breaches.
Security consultant
Analyze system settings, password strength, and network preferences to remove suspicious malware.
AppArmor
This is a kernel-level enhancement that prevents malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypts shared folder and network data transfers to prevent unauthorized data access.
2-step verification
This feature prevents others from logging into your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Trust level
Customize trust levels in the suite center to avoid installing packages from untrusted sources to protect your NAS from unknown or tampering suite files.
Operating System
Snapshot Replication
Timed, real-time data protection ensures that shared folders and iSCSI LUNs are still available in the event of a disaster.More
Synology High Availability
When a server fails, it seamlessly transitions between clustered servers to minimize the impact on the application.More
Safety
Built-in comprehensive security tools are constantly updated to protect your device from ever-changing threats.More
DSM OS UI
The DSM operating system has been recognized by the media for an intuitive user interface and great features.More
Good Integration
Easily back up and sync data between your public cloud account and Synology NAS.More
Virtual Machine Manager
Run various operating systems in the isolation sandbox. Seamlessly clone, restore, and migrate virtual machines.More
Technical Specifications
處理器頻率：四核心 2.2 （基準） / 2.7 （睿頻） GHz
安裝擴充設備之最大磁盤槽數量:16
M.2 硬盤插槽：2 (NVMe & SATA)
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
內存 可擴充至：64 GB (16 GB x 4)
最大 iSCSI LUN 數：512
外接磁盤：Btrfs/EXT4/EXT3/FAT/NTFS/HFS+/exFAT*
1050 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
500 FPS @ 5M (2591x1944)
500 FPS @ 4K (3840x2160)
450 FPS @ 1080p (1920x1080)
280 FPS @ 3M (2048x1536)
200 FPS @ 5M (2591x1944)
USB 3.0 端口：2
擴充端口：1
重量：8.16 公斤
機架安裝支持：四柱式 19 英寸機架
CE
EAC
BSMI
VCCI
CCC
RCM
KC
存儲溫度：-20°C 至 60°C (-5°F 至 140°F)
相對濕度：5% 至 95% RH
配件包 X 1
電源線 X 2
快速安裝指南 X 1
